รหัสสินค้า

ยี่ห้อ : GSG

รุ่น : TF-700D & 900D



คุณสมบัติของสินค้า :



Model GSG-700D GSG-900D
Minimum thickness of cut 3mm 3mm
Distance from fence to blade 185mm 230mm
Distance from feed roller to blade 190mm 300mm
Height from the floor to table 835mm 975mm
Wheel diameter 700mm 900mm
Wheel width 90mm 90mm
Width of blade 100mm 100mm
Length of blade 4850mm 5760mm
Feed speed variable variable
Moter 20HP 30HP
Hydraulic pump motor 2HP 2HP
Net weight 1,400kgs 2,200kgs
Gross weight: 1,600kgs 2,400kgs
Packing dimensions 2300 x 1350 x 2250mm 2730 x 1420 x 2550mm

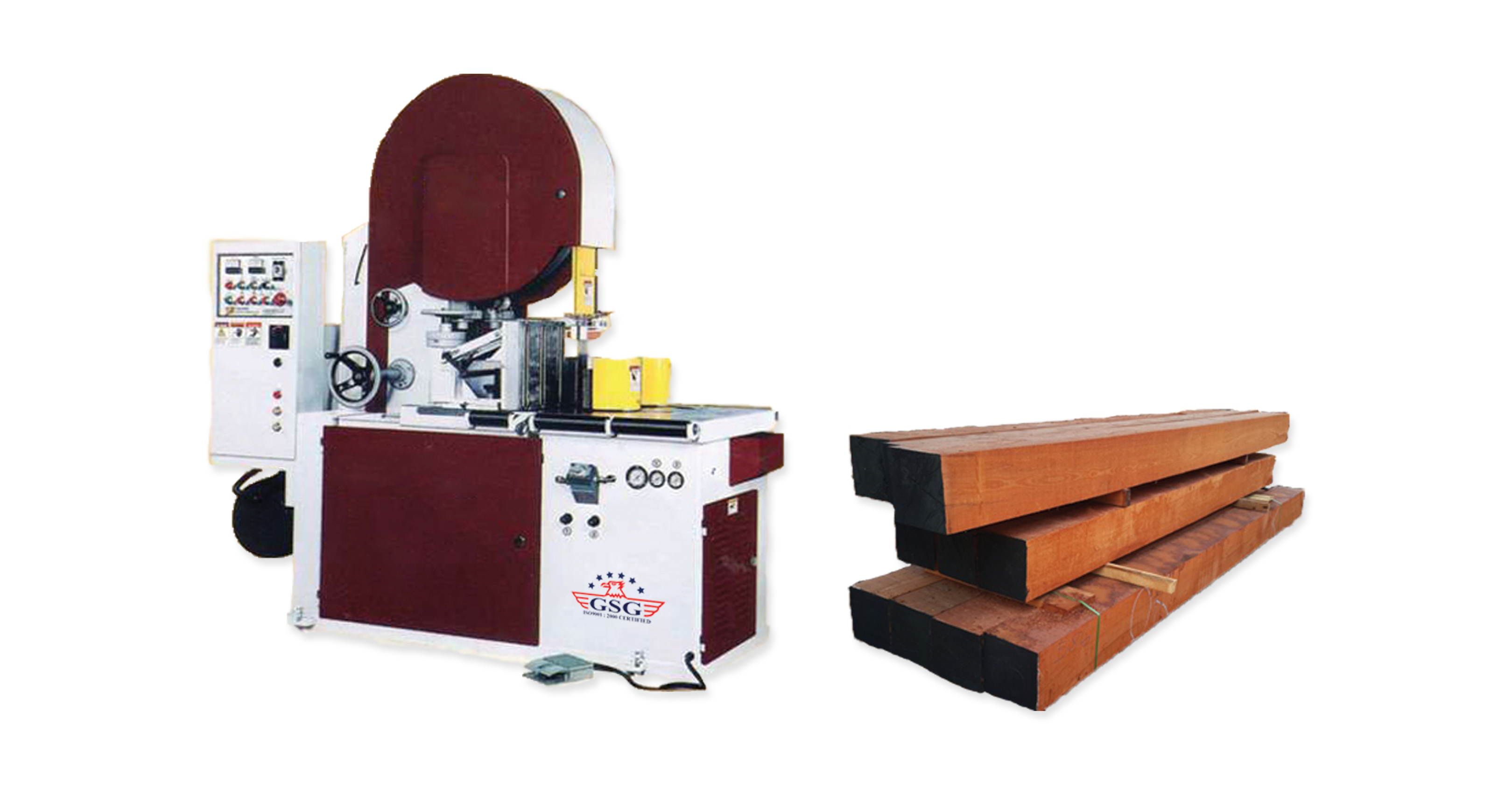

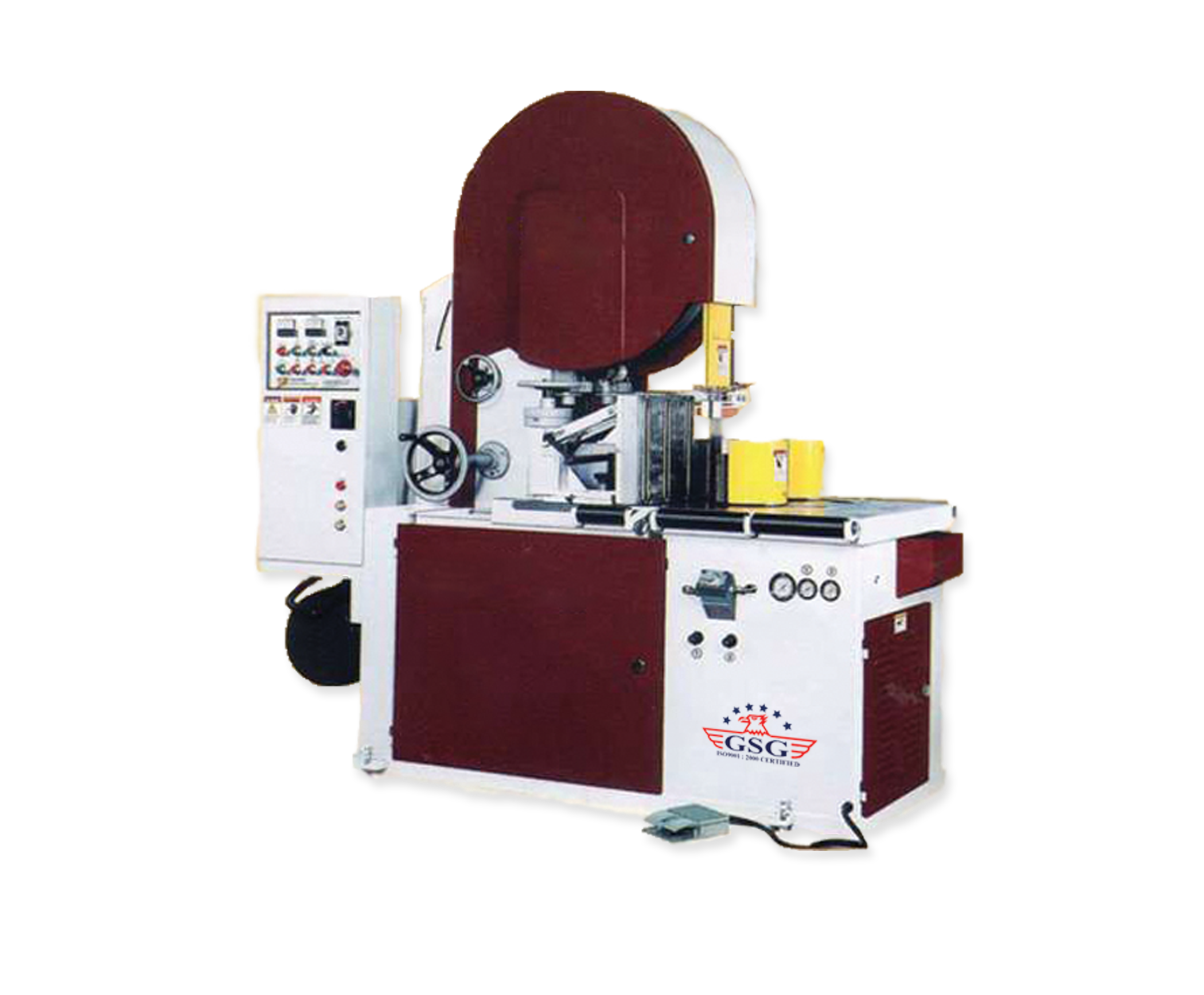

Vertical Band Resaw.

MACHINE FEATURES:

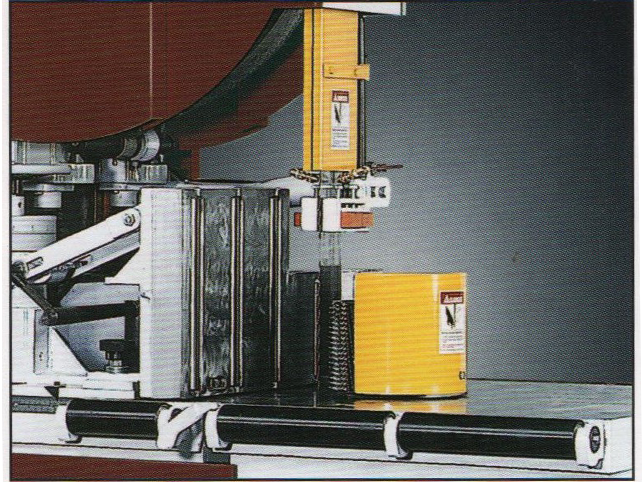

  • Powered feed roleer combined with automatic clamping and unclamping of workpiece for operational convenience.
  • Feed speed is variable.
  • Rollers on both infeed and outfeed end of table gives convenient resawing operation.



  •  Easy to install, which requires no further construction job.

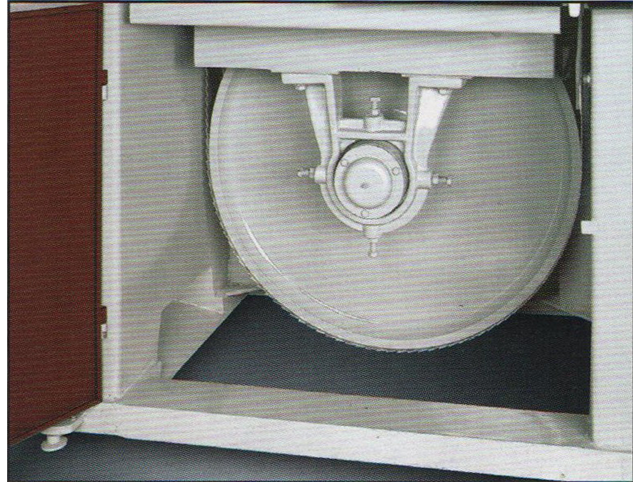

  •  The heavy duty saw wheel is dynamically balanced for smooth runnubg.

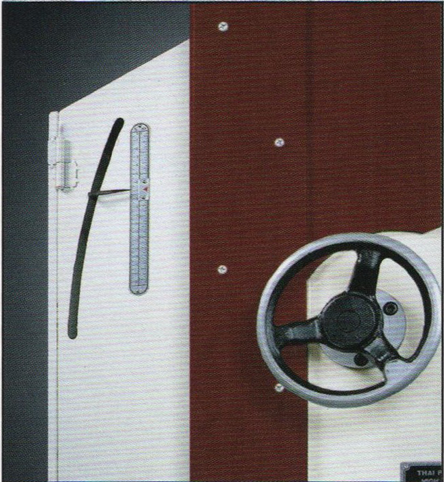

  • Blade tension can be accurately read from the rule gauge.

  •  Saw wheels run on precision bearing.

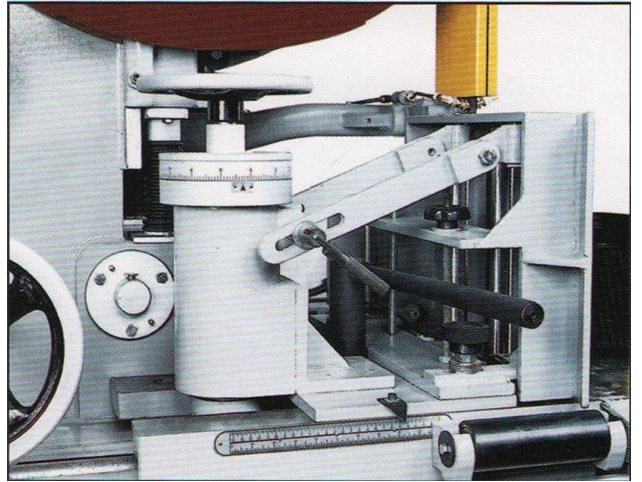

  • Fence setting is fast and convenient to make.

  • The entire fence assembly is ruggedly constructed, featuring high rigidity and durability.

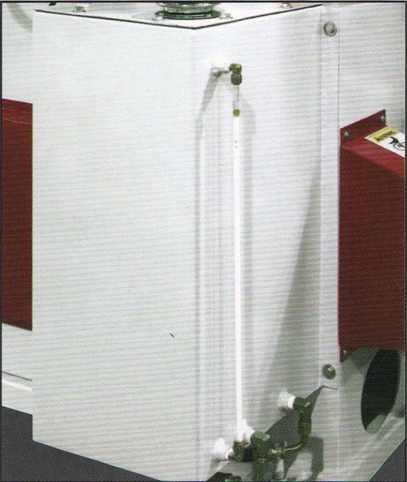

  • Automatic lubricator provides lubrication and cooling for the sawblade. It also reduces considerable noise level.




OPTIONAL EQUIPMENT:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

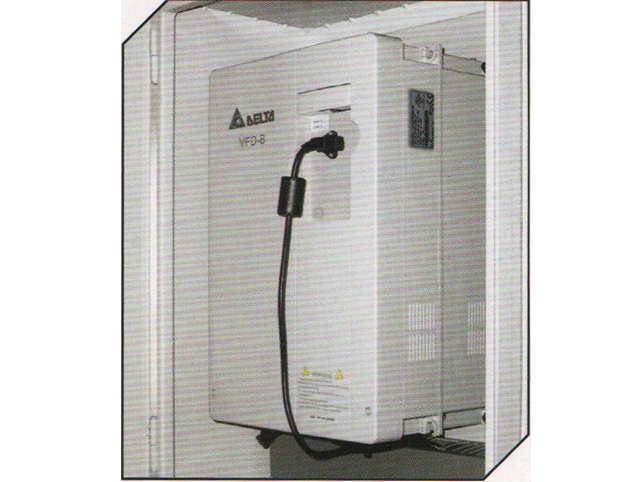

  • Frequency inverter. It provides various cutting speed to suit all types of wood.

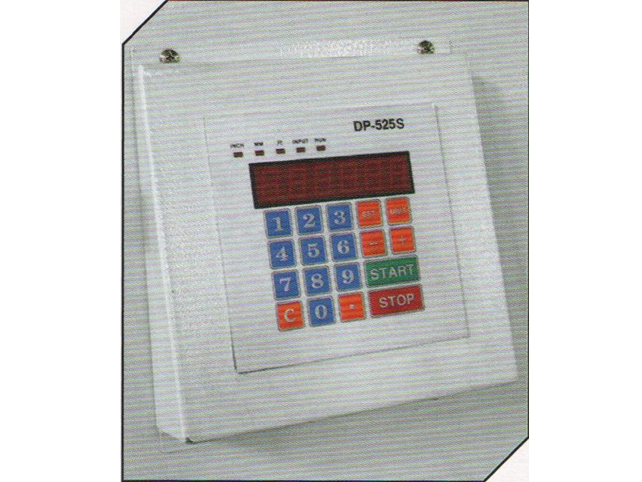

  • Digital position control for fence setting.
  • All models meeting CE, UL and CSA safety regulations are available.

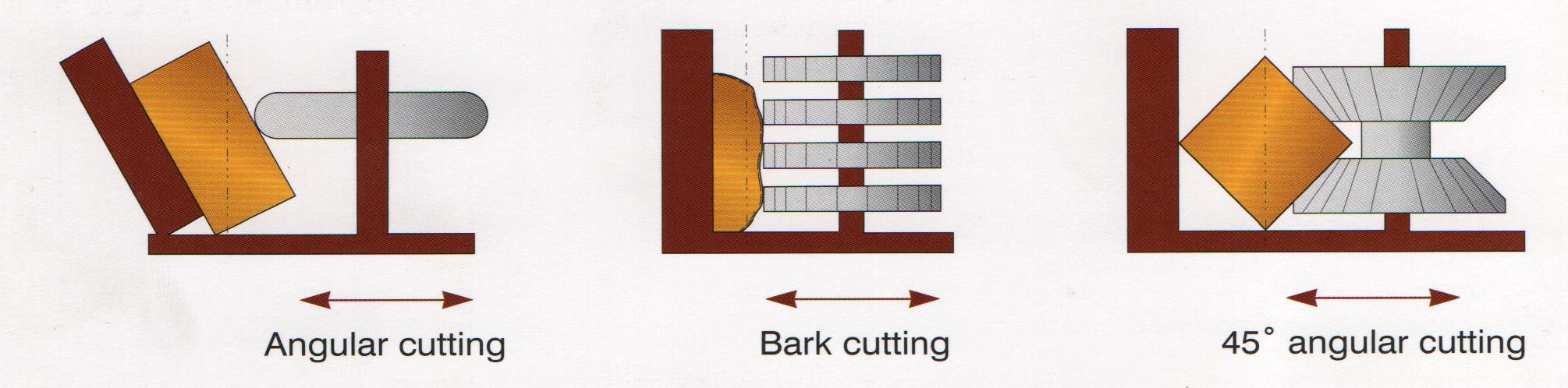

 CUTTING APPLICATIONS:

OPTIONAL FEED ROLLER:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
